Portable Wheel Mounted Spt Soil Investigation Geotechnical Exploration Core Drilling Rig

Name: Portable Wheel Mounted Spt Soil Investigation Geotechnical Exploration Core Drilling Rig
Brand: Aoxing
Price: 1 USD

Quality Portable Wheel Mounted Spt Soil Investigation Geotechnical Exploration Core Drilling Rig for sale

Brand Name : Aoxing

Model Number : XY-100 type

Certification : ISO9001

Place of Origin : Hebei,China

MOQ : 1 Set

Supply Ability : 30 Sets/Month

Packaging Details : in Plywood Case

Usage : Ore, Water Well, Soil Testing, Coal

Drill Hole Depth : 110m

Drill Hole Diameter : 76-220mm

Bit Type : Diamond Bit

Drilling Way : Rotary

Type : Core Drilling Rig

Power Type : Diesel

Application : Borehole/Spt/Core Drilling/Auger Drilling

Drilling Rig Base : Sliding Skid Base/Crawler Chassis/Wheels

Origin : China

After-Sales Service Provided : Video Technical Support

Contact Now

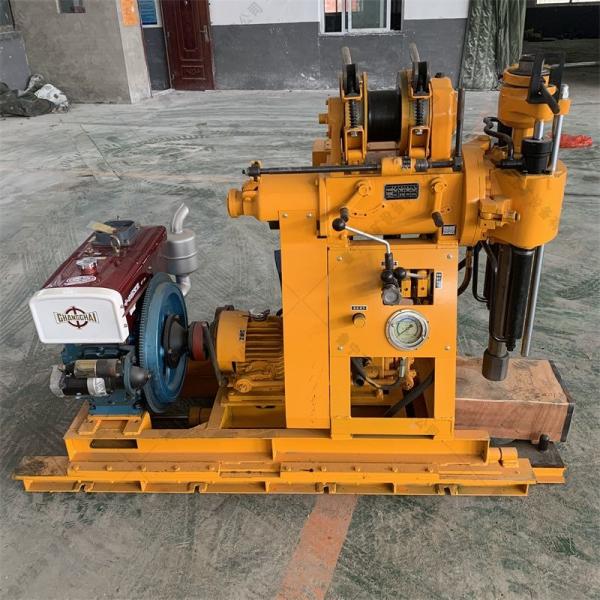

1. Applications of XY-100 hydraulic core drilling rig

XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.

2. Specifications of XY-100 hydralic core drilling rig

Model	XY-100
Drilling depth	110
Maximum open hole caliber	220mm
End hole caliber	75mm
Drill rod caliber	50mm /42mm
Drilling angle	90
Drilling rig weight (exclude diesel engine)	610kg
Unity machine dimensions	2.10.91.3m
Spindle
Spindle speed	130/300/480/730/830/1045 r/min
Spindle stroke	450mm
Hoist
Max. lifting capacity with single rope	1600kg
Lifting speed with single rope	1.06/0.67/0.32 m/s
Wire rope caliber	13mm
Wire rope cubic measure	35mm
Hug floodgate caliber	254mm
Hug floodgate belt width	50mm
Distance between drill and hole	230mm
Mud pump
Type	Horizontal single-urn twin-action
Displacement (with diesel engine/electric motor)	170l/min
Max. pressure	1.5mpa
Work pressure	0.7mpa
Power
Diesel engine	S1100
Electric motor	Y160M-4 / 10KW

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
